NCTHL-150/10 [Press-to-press transfer robot]
NCTHL-150/10
Up to 8 presses can be interconnected if direct conveyance is used.
Low-vibration conveyance and stable stopping accuracy contribute to high-precision forming.
The superior high-speed startup feature boosts productivity.
All drive components are built into the unit.Additionally, the feedbar motion takes place behind the die, which assures safe operation.
The compact body enables peripheral equipment such as material feeders and product extraction equipment to be installed in close proximity to the press.
Because sequential starting and stopping is possible, it is not necessary to set up workpieces at each stage.
The databank can store up to 99 conveyance patterns.These are displayed in an onscreen list for easy selection during operation.
The clamping status of all the robots as well as fault conditions can be monitored at the operation panel.
Low-vibration conveyance and stable stopping accuracy contribute to high-precision forming.
The superior high-speed startup feature boosts productivity.
All drive components are built into the unit.Additionally, the feedbar motion takes place behind the die, which assures safe operation.
The compact body enables peripheral equipment such as material feeders and product extraction equipment to be installed in close proximity to the press.
Because sequential starting and stopping is possible, it is not necessary to set up workpieces at each stage.
The databank can store up to 99 conveyance patterns.These are displayed in an onscreen list for easy selection during operation.
The clamping status of all the robots as well as fault conditions can be monitored at the operation panel.

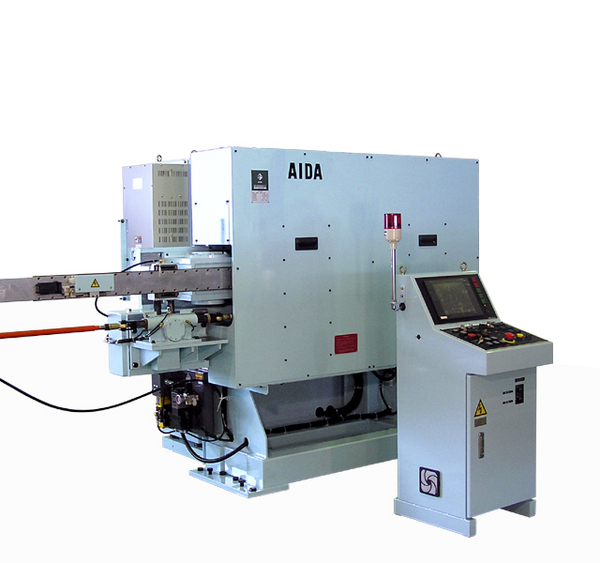

Photograph
|
|
