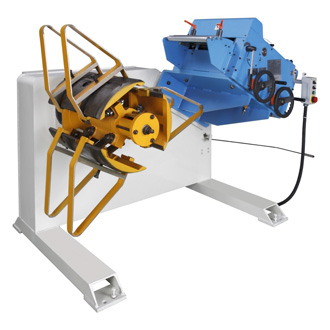

L Series
Sales Point
Provides cost-performance automation.
・Superior correction capabilities via 13 work rolls (6 upper, 7 lower).
・All rolls are plated with hard chrome.
・Combining this with our F Series NC roll feeder enables non-stop operation of the straightener and reduces roll marks.
・The all-roll drive greatly reduces surface scoring on the coil material.
・The straightener’s aperture feature lifts the upper work rolls high to allow easy access to the rolls for cleaning, thereby greatly reducing surface scoring on the coil material.
・Superior correction capabilities via 13 work rolls (6 upper, 7 lower).
・All rolls are plated with hard chrome.
・Combining this with our F Series NC roll feeder enables non-stop operation of the straightener and reduces roll marks.
・The all-roll drive greatly reduces surface scoring on the coil material.
・The straightener’s aperture feature lifts the upper work rolls high to allow easy access to the rolls for cleaning, thereby greatly reducing surface scoring on the coil material.
Ability Lineup
Products can accommodate 300 mm and 400 mm material widths.
Both single and double uncoilers are available.
Both single and double uncoilers are available.
Search
| Model | Material Width [mm] |
Material Thickness [mm] |
Coil Weight [kg] |
Coil O.D. [mm] |
Coil I.D. [mm] |
Feed Speed [m/min] |
|
|---|---|---|---|---|---|---|---|
| L-40W |  |
30 - 400 | 0.3 - 0.6 | 2 - 1200 | - 1200 | φ508 | 2.2-22 |
| L-40 | |
30 - 400 | 0.3 - 0.6 | 1 - 1200 | - 1200 | φ508 | 2.2-22 |
| L-30W | |
30 - 300 | 0.3 - 1 | 2 - 1200 | - 1200 | φ508 | 1.8-18 |
| L-30 | |
30 - 300 | 0.3 - 1 | 1 - 1200 | - 1200 | φ508 | 1.8-18 |
