Custom Coil Lines
Sales Point

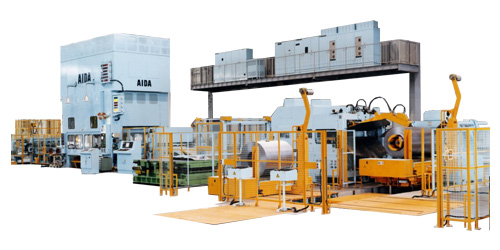

A line that pays out (unwinds) steel coil material, removes coil set and flattens coil material as it is fed through multiple upper and lower rollers, and continuously feeds preset lengths into a press based on the dimension of the product being formed.
You can select the optimal line from our broad product offerings based on the width and thickness of the coil material.
We also offer large lines that can accommodate the high-tensile steel materials that have been increasingly used in the automotive industry and also coil lines that can accommodate the steel materials used for automotive exterior body panels.
The appropriate line can also be selected based on the type of coil material being used.
We can also deliver custom lines with special specifications, such as lines that use colored steel materials and large blanking lines equipped with pilers.
We offer a wide array of automation functions, ranging from auto-threading of the leading end of the coil to auto-rewinding of coil material.
You can select the optimal line from our broad product offerings based on the width and thickness of the coil material.
We also offer large lines that can accommodate the high-tensile steel materials that have been increasingly used in the automotive industry and also coil lines that can accommodate the steel materials used for automotive exterior body panels.
The appropriate line can also be selected based on the type of coil material being used.
We can also deliver custom lines with special specifications, such as lines that use colored steel materials and large blanking lines equipped with pilers.
We offer a wide array of automation functions, ranging from auto-threading of the leading end of the coil to auto-rewinding of coil material.
Ability Lineup
The LM General-Purpose Cradle, the ES/ESR General-Purpose Uncoiler, and the LS General-Purpose Straightener.Large Coil Lines.
| Model | Material Width [mm] |
Material Thickness [mm] |
Coil O.D. [mm] |
Coil I.D. [mm] |
Coil Material | |
|---|---|---|---|---|---|---|
| RSE-185 |  |
300 - 1850 | 0.5 - 6 | - φ1800 | φ508.61 | SAPH、SPC、 |
| RSE-183 | |
300 - 1830 | 0.4 - 3.2 | - φ1800 | φ508.61 | SAPH、SPC、surface treated steel sheets |
| RSE-170 | |
600 - 1700 | 0.5 - 1.6 | - φ1800 | φ610 | SAPH、SPC、surface treated steel sheets |
| RSE-165 | |
350 - 1650 | 0.6 - 6 | - φ1800 | φ508 | SAPH、SPC、surface treated steel sheets |
| RSE-130 | |
200 - 1300 | 0.6 - 3.2 | - φ1800 | φ508.61 | SAPH、SPC |
