RSE-183 [Custom Coil Line]

RSE-183
 A coil feeder line that can accommodate high-tensile steels.
≪Basic Configuration≫
・Skid Car and Coil Car: A coil holding stand and shuttle cart used to load coil material onto an uncoiler.
・Uncoiler: Equipment that maintains and unwinds (pays out) coil material.
・Coiler Holder Opener: Equipment (opener) that pays out (unwinds) coil material and guides the material when it passes through a straightener, and equipment that prevents the coil from losing tension and unraveling.
・Hydraulic Shear: Equipment that cuts coil material into lengths and can also cut off the leading and tailing ends of coil material.
・Straightener: Equipment that uses multiple upper and lower rollers to correct coil set and flatten coil material as it passes through.
・Loop Table: A lifting /lowering table that supports the material loop when material is being threaded and when the equipment is operating in continuous mode.
・Counter Feeder: Equipment that intermittently feeds material in preset lengths via servomotor-driven upper and lower rolls.
・Micro Feeder (End Feeder): Equipment that feeds the tailing end of the coil into a press in preset lengths.

Photograph

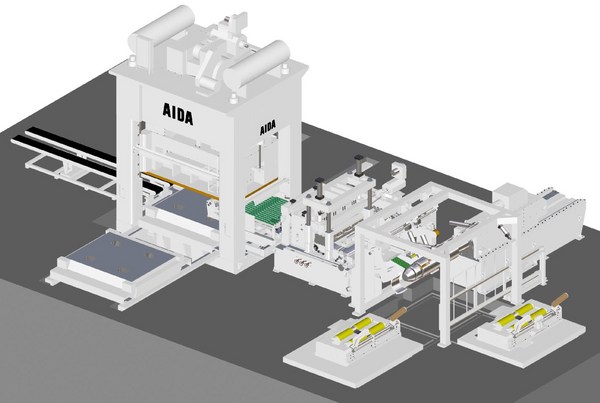

Line Composition
Coil Skid CT-20-183
Coil Car C-20-183
Uncoiler EA-20-183
Coil Hold-Down & Opener HD-183H
Shear/Nibbler Motorized Shear
Straightener LA-18332P
Loop Table LT-E
Counter Feeder RSE-183
Micro Feeder MF-165
Press PMX-L4-10000(2)
Device transfer  Conveyor

Line Specifications
Coil Material SAPH、SPC、surface treated steel sheets
Coil Weight[t] 20
Coil O.D.[mm]  - φ1800
Coil I.D.[mm] φ508.61
Material Width[mm] 300 - 1830
Material Thickness[mm] 0.4 - 3.2
Feed Length
Press Master[mm]
2000
Line Strokes(under no load)[spm] 20 - 60
Line Speed[m/min] 15 - 70
