ＬＦＸ-1600 [Straightener Feeder]
ＬＦＸ-1600
A straightener feeder line that accommodates high-tensile as well as thick coil materials.
《Basic Configuration》
・Coil Car: A coil holding stand and shuttle cart that is used to load coil material onto an uncoiler.
・Uncoiler: Equipment that maintains and unwinds (pays out) coil material.
・Table and Opener: Equipment that pays out coil material loaded on an uncoiler and feeds it to a straightener feeder.
・Hydraulic Shear: Equipment that cuts coil material into lengths and can also cut off the leading and tailing ends of coil material.
・Straightener Feeder: Equipment that uses multiple upper and lower rollers to correct coil set and flatten coil material as it passes through, and feeds the material in preset lengths.
・Micro Feeder (End Feeder): Equipment that feeds the tailing end of the coil into a press in preset lengths.
《Basic Configuration》
・Coil Car: A coil holding stand and shuttle cart that is used to load coil material onto an uncoiler.
・Uncoiler: Equipment that maintains and unwinds (pays out) coil material.
・Table and Opener: Equipment that pays out coil material loaded on an uncoiler and feeds it to a straightener feeder.
・Hydraulic Shear: Equipment that cuts coil material into lengths and can also cut off the leading and tailing ends of coil material.
・Straightener Feeder: Equipment that uses multiple upper and lower rollers to correct coil set and flatten coil material as it passes through, and feeds the material in preset lengths.
・Micro Feeder (End Feeder): Equipment that feeds the tailing end of the coil into a press in preset lengths.

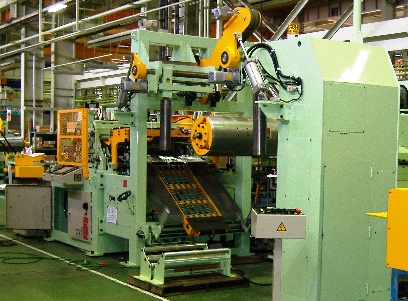

Photograph
|
| ||||||||||||||||||||||||||||||||||
