Electrical Wire Auto-Measuring and Cutting Equipment [Electrical Wiring Cutter]

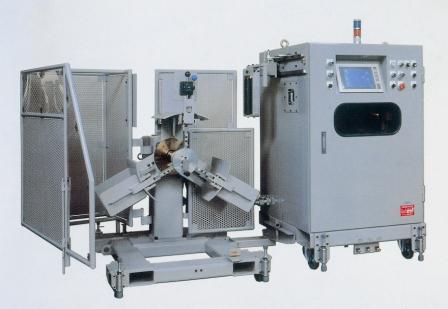

Electrical Wire Auto-Measuring and Cutting Equipment
Measures and coils electrical wires and also cuts wire to length.
When cutting short lengths it is possible to make cuts using just the payout equipment without the coiling equipment, thereby enabling continuous payout and cutting.
The manual cutting operation incorporates safety measures such as door interlocks and two-hand operation.
Applicable Wire Type 2SV、3SV、2DV、3DV、SNOE、SNOC、SNOW,SNHAL-OC,ACSR-SNOE、ACSR-ANOW,etc
Max. Coiling Wire O.D.[mm] φ50
Coiling Speed[m/min] High-Speed：30/Low Speed：15
Wire Meaasuring Accuracy[%] 0～＋1（includes compensation device）
Max. Coiling O.D.[mm] φ1000
Coiling Width[mm] 300
Max. Coiling Weight[kg] 200
External Dimensions and Weight
Total Length[mm] 850
Total Width[mm] 850
Total Height[mm] 1456
Weight[kg] 480
Winding Equipment
Total Length[mm] 1250
Total Width[mm] 963
Total Height[mm] 1300
Weight[kg] 460
When Used Together
Total Length[mm] 2242
Weight[kg] 940
