ＢＰ-200160-Ｍ1Ｃ [Blanking piler]

Sales Point


Ability Lineup


ＢＰ-200160-Ｍ1Ｃ
　A piling system that minimizes dent and scratch damage to sheet materials when stacking blanks.
　Blanks leaving the press are picked up by a magnetic conveyor belt and conveyed to the piling stage, where the conveyor stops and the blank is then dropped and stacked.
　Single or dual stacking equipment is available.
　Additionally, we can incorporate additional functionality enhancements in order to offer optimized piling systems for automotive exterior body panels.

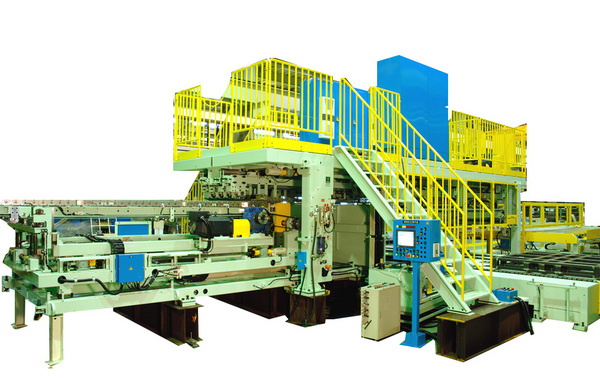

Photograph

Line Composition
Product Conveyor rubber belt　type
Piler[spm] Magnetic conveyor drop position set type
Strokes per Minute under no load 25
Line Speed[m/min]
Stacked Material Specifications
Material Dimensions(LR*FB)[mm] 2000×1850 - 150×300
Material Thickness[mm] 3.2 - 0.6
Material Weight(MAX)[kg] 5
Stacking Height[mm] 500
Stacking Weight[kg] 5000
Piler Stacking Specifications
No. of Stacking table/No. of Stacking Weight 2
Number of stacking 1
Stacking Method Natural drop type
Product Conveyor Specifications
Conveyor Type Pickup conveyance type/Continuous drive rubber belt system
Belt Width[mm] 1600
Machine Length[mm] 6200
Transfer Height[mm] 950
Transfer Speed[mm/min] 120
Variable Transfer Speed Method Adjustable type (data setting)
